Description

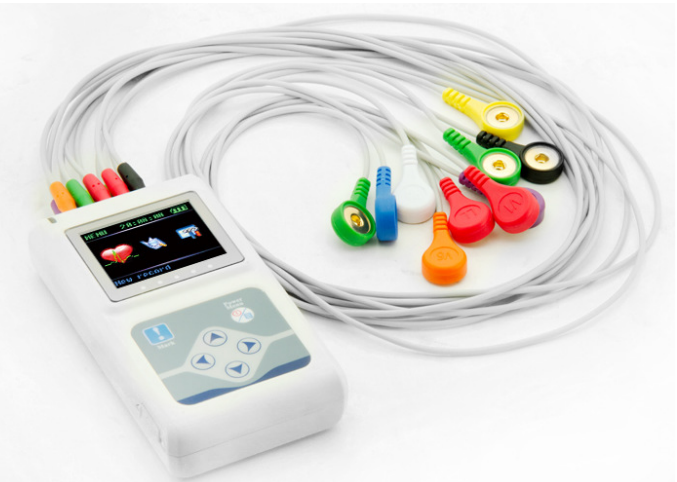

Introduction :TLC5000 Dynamic ECG System adapts international standard 12-lead system, can record continuously ECG waves for 24h, and analyses waves with PC software. It is applicable in hospital and community medical establishment.
Main Features ■Quick and accurate analysis system. ■The 12-leads synchro analysis , to find accurate,QRS search can be accurate and no distortion. ■There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms. ■Flexible analysis channel selection function,can choose any channel as the mainly analysis the channel. ■Flexible atrial fibrillation analysis ,so that physicians can use full,segmented automatic manual analysis of atrial fibrillation,make the analysis more quickly and accurately. ■Powerful pacemaker analysis,on the AAI,VVI,DDD etc. all pacemaker analysis. ■Many pacing modules have been added. ■Fast review analysis function,can be any period of time the review single lead or all leads electrocardiogram■Analysis of heard rate variability with short-range 5 minutes and long-range 1 hour and 24 hours analysis of heart rate variability. ■Qne-stop printing operation,report printing process is convenient and quick. ■Perfect function of case management. ■Advanced ST segment analysis and myocardial ischemia total load,can for the ST abnormal analysis according to the whole and event,make the doctor can comprehensive judgment myocardial ischemia. ■Unique “Sleep breath pause syndrome analysis” analysis can predict Sleep breath pause risk. ■”HRT” analysis can predict the risk of death in patients with myocardial infarction. ■”T Wave alternation” analysis is an important index to predict malignant arrhythmia and sudden cardiac death. ■With QT discrete degree analysis,ventricular late potential analysis,vector ecg analysis,time vector analysis and so on,many kinds of additional analysis function,make analysis report more reference value.
Recorder Features ■With advanced design and technology, the recorder can work stably, dependably and durably. ■Be provided with the capability of anti-jamming and aseismatic. ■Small volume with OLED screen. The resolution is 160*128. ■Be provided with functions of waveform preview, record review and event marking. ■Accurate record of the start time of the data sampled owing to the real time clock of itself. ■void damage owing to the repeating inserting and pulling out by using the inbuilt TF card to storage the data.■The maximum capability can be 2GB, so the original data can be saved perfectly by no compression. ■The average review time of single case can be less than 40 seconds by using interface of USB 2.0. ■Record waveform details inextenso by the design of high precision and sampling frequency. ■Record the state of pacemaker exactly by higher sampling frequency. ■International standard of 12 leads. Record 24-hour DECG with the same standard of the ECG.
